# Copyright (C) 2011 Nippon Telegraph and Telephone Corporation.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or
# implied.
# See the License for the specific language governing permissions and
# limitations under the License.
from ryu.base import app_manager
from ryu.controller import ofp_event
from ryu.controller.handler import CONFIG_DISPATCHER, MAIN_DISPATCHER
from ryu.controller.handler import set_ev_cls
from ryu.ofproto import ofproto_v1_3
from ryu.lib.packet import packet
from ryu.lib.packet import ethernet
from ryu.lib.packet import ether_types
class SimpleSwitch13(app_manager.RyuApp):
OFP_VERSIONS = [ofproto_v1_3.OFP_VERSION]
def __init__(self, *args, **kwargs):
super(SimpleSwitch13, self).__init__(*args, **kwargs)
# 处理交换机连接
@set_ev_cls(ofp_event.EventOFPStateChange, MAIN_DISPATCHER)
def switch_features_handler(self, ev):
datapath = ev.datapath
ofproto = datapath.ofproto
parser = datapath.ofproto_parser
# 交换机新连接
if ev.state == MAIN_DISPATCHER:
# 断言dpid存在
assert datapath.id is not None
print("Switch Coming", datapath.id)
# 为交换机的流表新增Table-miss Flow Entry项 用于在无法匹配到流表项后与之匹配
# match表示匹配约束 为空则说明可以匹配所有封包
# action表示匹配成功后执行的操作为向Controller端口发送最大数据长度的封包
# OFPCML_NO_BUFFER表示不需要在交换机上缓存封包将封包整体发给controller
# 优先级为0 即最低的优先权
match = parser.OFPMatch()
actions = [parser.OFPActionOutput(ofproto.OFPP_CONTROLLER,
ofproto.OFPCML_NO_BUFFER)]
self.add_flow(datapath, 0, match, actions)
# 预下发静态路由
self.download_routing(datapath)
# 预下发静态路由表

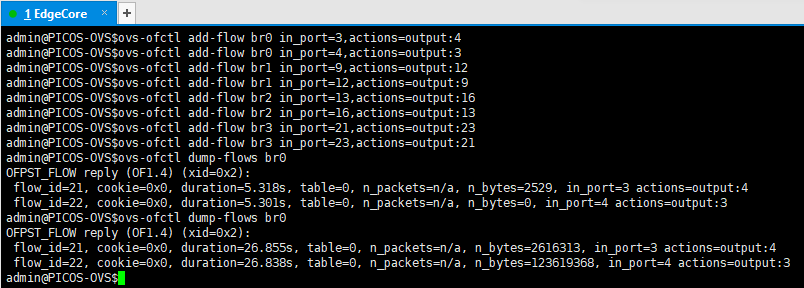

def download_routing(self, datapath):
dpid = datapath.id
ofproto = datapath.ofproto
parser = datapath.ofproto_parser
if dpid == 1:
# [100-1] 从3端口输入的流量 从4端口输出
in_port, out_port = 3, 4
match = parser.OFPMatch(in_port=in_port)
actions = [parser.OFPActionOutput(out_port)]
self.add_flow(datapath, 1, match, actions)
# [100-2] 从4端口输入的流量 从3端口输出
in_port, out_port = 4, 3
match = parser.OFPMatch(in_port=in_port)
actions = [parser.OFPActionOutput(out_port)]
self.add_flow(datapath, 1, match, actions)
if dpid == 2:
# [200-1] 从9端口输入的流量 从12端口输出
in_port, out_port = 9, 12
match = parser.OFPMatch(in_port=in_port)
actions = [parser.OFPActionOutput(out_port)]
self.add_flow(datapath, 1, match, actions)
# [200-2] 从12端口输入的流量 从9端口输出
in_port, out_port = 12, 9
match = parser.OFPMatch(in_port=in_port)
actions = [parser.OFPActionOutput(out_port)]
self.add_flow(datapath, 1, match, actions)
if dpid == 3:
# [300-1] 从13端口输入的流量 从16端口输出
in_port, out_port = 13, 16
match = parser.OFPMatch(in_port=in_port)
actions = [parser.OFPActionOutput(out_port)]
self.add_flow(datapath, 1, match, actions)
# [300-2] 从16端口输入的流量 从13端口输出
in_port, out_port = 16, 13
match = parser.OFPMatch(in_port=in_port)
actions = [parser.OFPActionOutput(out_port)]
self.add_flow(datapath, 1, match, actions)
if dpid == 4:
# [400-1] 从21端口输入的流量 从23端口输出
in_port, out_port = 21, 23
match = parser.OFPMatch(in_port=in_port)
actions = [parser.OFPActionOutput(out_port)]
self.add_flow(datapath, 1, match, actions)
# [400-2] 从23端口输入的流量 从21端口输出
in_port, out_port = 23, 21
match = parser.OFPMatch(in_port=in_port)
actions = [parser.OFPActionOutput(out_port)]
self.add_flow(datapath, 1, match, actions)
# 用于添加流表项的工具函数
def add_flow(self, datapath, priority, match, actions, buffer_id=None):
ofproto = datapath.ofproto
parser = datapath.ofproto_parser
inst = [parser.OFPInstructionActions(ofproto.OFPIT_APPLY_ACTIONS,
actions)]
if buffer_id:
mod = parser.OFPFlowMod(datapath=datapath,
buffer_id=buffer_id,
priority=priority,
match=match,
instructions=inst)
else:
mod = parser.OFPFlowMod(datapath=datapath,
priority=priority,
match=match,
instructions=inst)
datapath.send_msg(mod)
# 控制器接收到Packet-In消息
@set_ev_cls(ofp_event.EventOFPPacketIn, MAIN_DISPATCHER)
def packet_in_handler(self, ev):
msg = ev.msg
datapath = msg.datapath
in_port = msg.match['in_port']
print("Recv PACKET_IN", datapath.id,"from",in_port)
pkt = packet.Packet(msg.data)
eth = pkt.get_protocols(ethernet.ethernet)[0]
print("Eth pkt: {0}".format(eth))
|
