#include "coll_custom_huge_all_reduce_mesh_executor.h"
namespace hccl
{
CollCustomHugeAllReduceMeshExecutor::CollCustomHugeAllReduceMeshExecutor(const HcclDispatcher dispatcher,
std::unique_ptr<TopoMatcher> &topoMatcher)
: CollCommExecutor(dispatcher, topoMatcher)
{
}
// Calculate the amount of scratch memory to request
HcclResult CollCustomHugeAllReduceMeshExecutor::CalcScratchMemSize(u64 &scratchMemSize)
{
// We don't need to use Scratch memory
scratchMemSize = 0U;
HCCL_WARNING("[HCCLContest][CollCustomHugeAllReduceMeshExecutor][CalcScratchMemSize] scratchMemSize: %u", scratchMemSize);
return HCCL_SUCCESS;
}
// Calculate the number of streams to be requested
HcclResult CollCustomHugeAllReduceMeshExecutor::CalcStreamNum(u32 &streamNum)
{
u32 totalStreamNum = topoAttr_.deviceNumPerAggregation;
streamNum = totalStreamNum - 1U;
HCCL_WARNING("[HCCLContest][CollCustomHugeAllReduceMeshExecutor][CalcStreamNum] streamNum: %u", streamNum);
return HCCL_SUCCESS;
}
// Calculate the number of Notify to be requested
HcclResult CollCustomHugeAllReduceMeshExecutor::CalcNotifyNum(u32 streamNum, u32 ¬ifyNum)
{
// ReducesScatter needs 2 Notify, AllGather needs 2 Notify
notifyNum = 4U * streamNum;
HCCL_WARNING("[HCCLContest][CollCustomHugeAllReduceMeshExecutor][CalcNotifyNum] notifyNum: %u", notifyNum);
return HCCL_SUCCESS;
}
// Set up the level-0 mesh topology required for the AllReduce operation
HcclResult CollCustomHugeAllReduceMeshExecutor::CalcCommInfo(std::vector<LevelNSubCommTransport> &opTransport)
{
HCCL_WARNING("[HCCLContest][CollCustomHugeAllReduceMeshExecutor][CalcCommInfo]");
// Define the source and destination memory types for communication
TransportMemType inputType = TransportMemType::CCL_INPUT;
TransportMemType outputType = TransportMemType::CCL_OUTPUT;
// Construct a mesh topology for level 0
CommParaInfo commParaLevel0(COMM_LEVEL0, CommType::COMM_TAG_MESH);
// Compute and populate the transport plan for level-0 communication domain
CHK_RET(CalcCommPlaneInfo(tag_, commParaLevel0, opTransport[COMM_LEVEL0], inputType, outputType));
return HCCL_SUCCESS;
}
// Calculate the number of iterations for loop processing
u64 CollCustomHugeAllReduceMeshExecutor::CalcLoopMaxCount(const u64 cclBuffSize, const u32 unitSize)
{
u64 maxCountPerLoop = cclBuffSize / unitSize;
HCCL_WARNING("[HCCLContest][CollCustomHugeAllReduceMeshExecutor][CalcLoopMaxCount] maxCountPerLoop: %u", maxCountPerLoop);
return maxCountPerLoop;
}
// Entry point for orchestrating the AllReduce algorithm execution
HcclResult CollCustomHugeAllReduceMeshExecutor::Orchestrate(OpParam ¶m, AlgResourceResponse &algRes)
{
HCCL_WARNING("[HCCLContest][CollCustomHugeAllReduceMeshExecutor][Orchestrate] count: %u", param.DataDes.count);
tag_ = param.tag;
algResResp_ = &algRes;
// Cast and validate pointers to the user-provided input and output memory buffers
u8 *userInputPtr = static_cast<u8 *>(param.inputPtr);
u8 *userOutputPtr = static_cast<u8 *>(param.outputPtr);
CHK_PTR_NULL(userInputPtr);
CHK_PTR_NULL(userOutputPtr);
// Determine the number of ranks in the communication domain
CHK_RET(CheckCommSize(COMM_LEVEL0, COMM_INDEX_0 + 1));
SubCommInfo level0CommInfo = GetSubCommInfo(COMM_LEVEL0, COMM_INDEX_0);
u32 rankSize = level0CommInfo.localRankSize;
// Determine the size of a single data unit (e.g., 4 bytes for fp32)
u32 unitSize = SIZE_TABLE[param.DataDes.dataType];
// Calculate max number of elements per iteration based on available CCL_Out memory
u64 maxCountPerLoop = CalcLoopMaxCount(algRes.cclOutputMem.size(), unitSize) * (rankSize - BROKEN_RANK_COUNT);
// Loop to process data in chunks if the total data count exceeds maxCountPerLoop
// countLeft: Remaining number of data elements to process
// curCount: Number of data elements processed in the current loop iteration
// inputOffset: Current byte offset in user's input memory buffer
// outputOffset: Current byte offset in user's output memory buffer
for (u64 countLeft = param.DataDes.count, curCount = 0, inputOffset = 0, outputOffset = 0; countLeft > 0;)
{
// Determine the number of data elements for the current iteration
curCount = (countLeft > maxCountPerLoop) ? maxCountPerLoop : countLeft;
// Determine the total data size for the current iteration (unit: bytes)
u64 curSize = curCount * unitSize;
// Construct memory information for the current loop iteration
ExecMem execMem;
execMem.count = curCount; // Number of data elements to process in this loop
execMem.inputPtr = userInputPtr + inputOffset; // Pointer to the current offset of user's input memory buffer
execMem.outputPtr = userOutputPtr + outputOffset; // Pointer to the current offset of user's output memory buffer
execMem.inputMem = algRes.cclInputMem; // Local CCL_Input memory
execMem.outputMem = algRes.cclOutputMem; // Local CCL_Output memory
execMem.scratchMem = algRes.scratchMem; // Local Scratch memory
// Execute the kernel logic for the current data chunk
CHK_RET(KernelRun(param, execMem));
// Update offsets for the next loop iteration
countLeft -= curCount;
inputOffset += curSize;
outputOffset += curSize;
}
return HCCL_SUCCESS;
}
// Process data for a single iteration of the AllReduce algorithm execution
HcclResult CollCustomHugeAllReduceMeshExecutor::KernelRun(const OpParam ¶m, ExecMem &execMem)
{
// Get sub-communication domain information for level 0
CHK_RET(CheckCommSize(COMM_LEVEL0, COMM_INDEX_0 + 1));
SubCommInfo level0CommInfo = GetSubCommInfo(COMM_LEVEL0, COMM_INDEX_0);
u32 rankSize = level0CommInfo.localRankSize;
u32 rankId = level0CommInfo.localRank;
u32 unitSize = SIZE_TABLE[param.DataDes.dataType];
// Cut the chunk into multiple blocks
CHK_RET(PrepareBlock(execMem.count, unitSize, rankSize - BROKEN_RANK_COUNT));
// Perform ReduceScatter
if (IsHealthyRank(rankId))
{
CHK_RET(HealthyPerformReduceScatter(param, execMem));
}
else
{
CHK_RET(UnhealthyPerformReduceScatter(param, execMem));
}

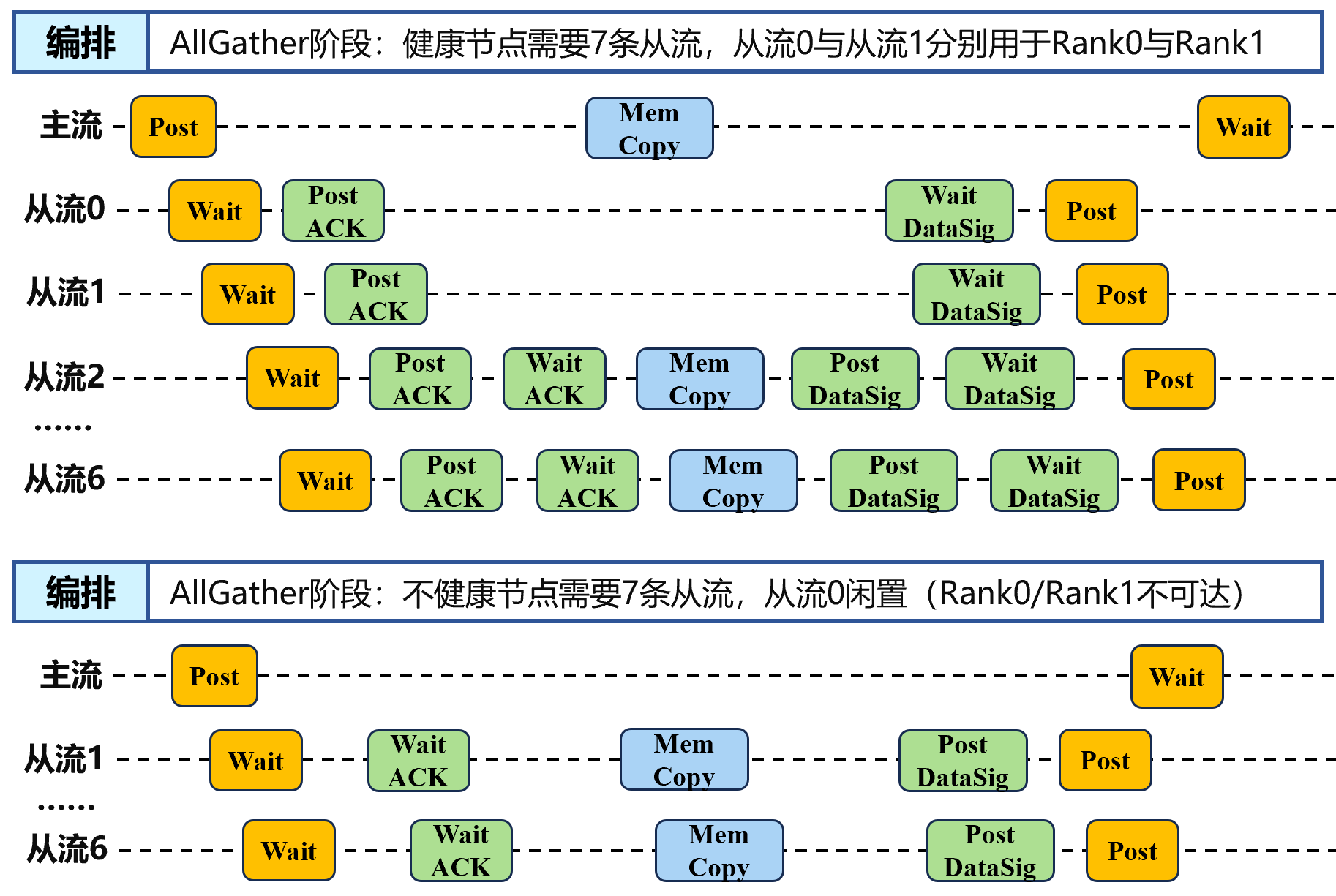

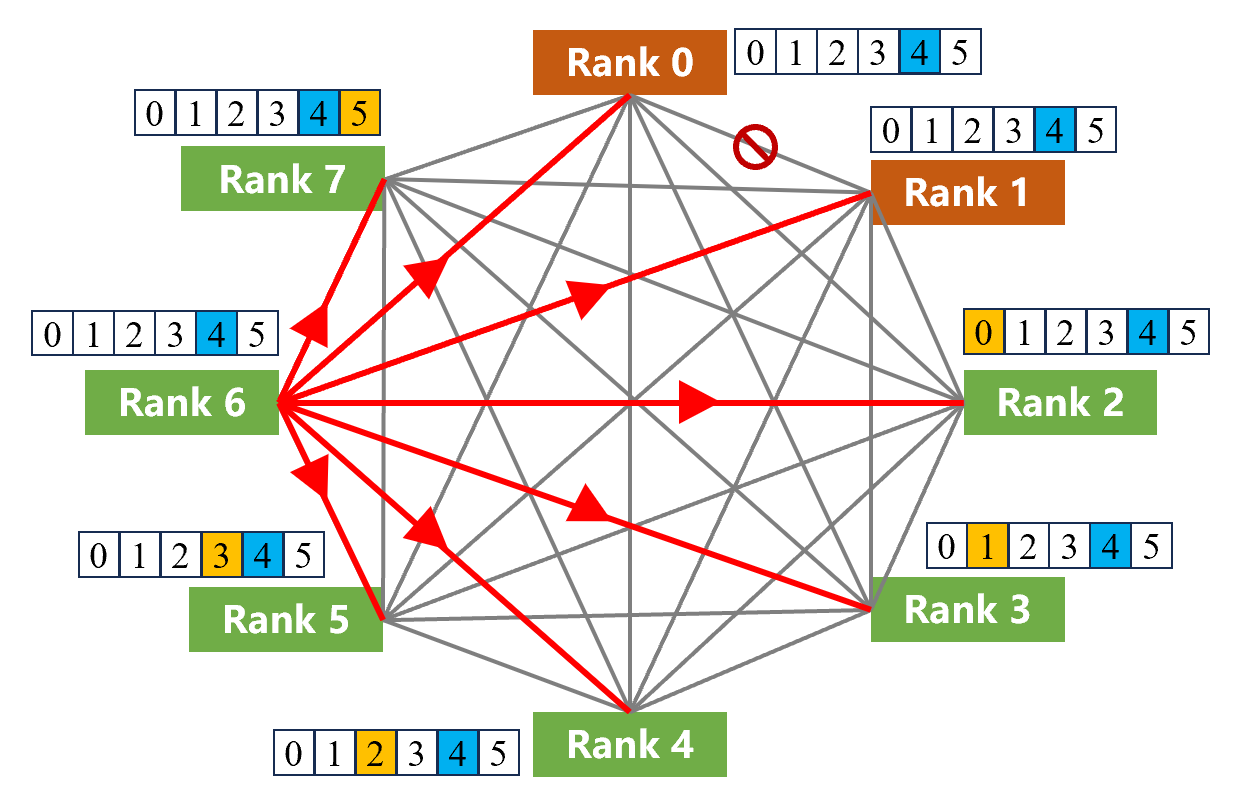

// Perform AllGather
if (IsHealthyRank(rankId))
{
CHK_RET(HealthyPerformAllGather(param, execMem));
}
else
{
CHK_RET(UnhealthyPerformAllGather(param, execMem));
}
HCCL_WARNING("[HCCLContest][CollCustomHugeAllReduceMeshExecutor][KernelRun] localRank: %u, localRankSize: %u",
level0CommInfo.localRank, level0CommInfo.localRankSize);
return HCCL_SUCCESS;
}

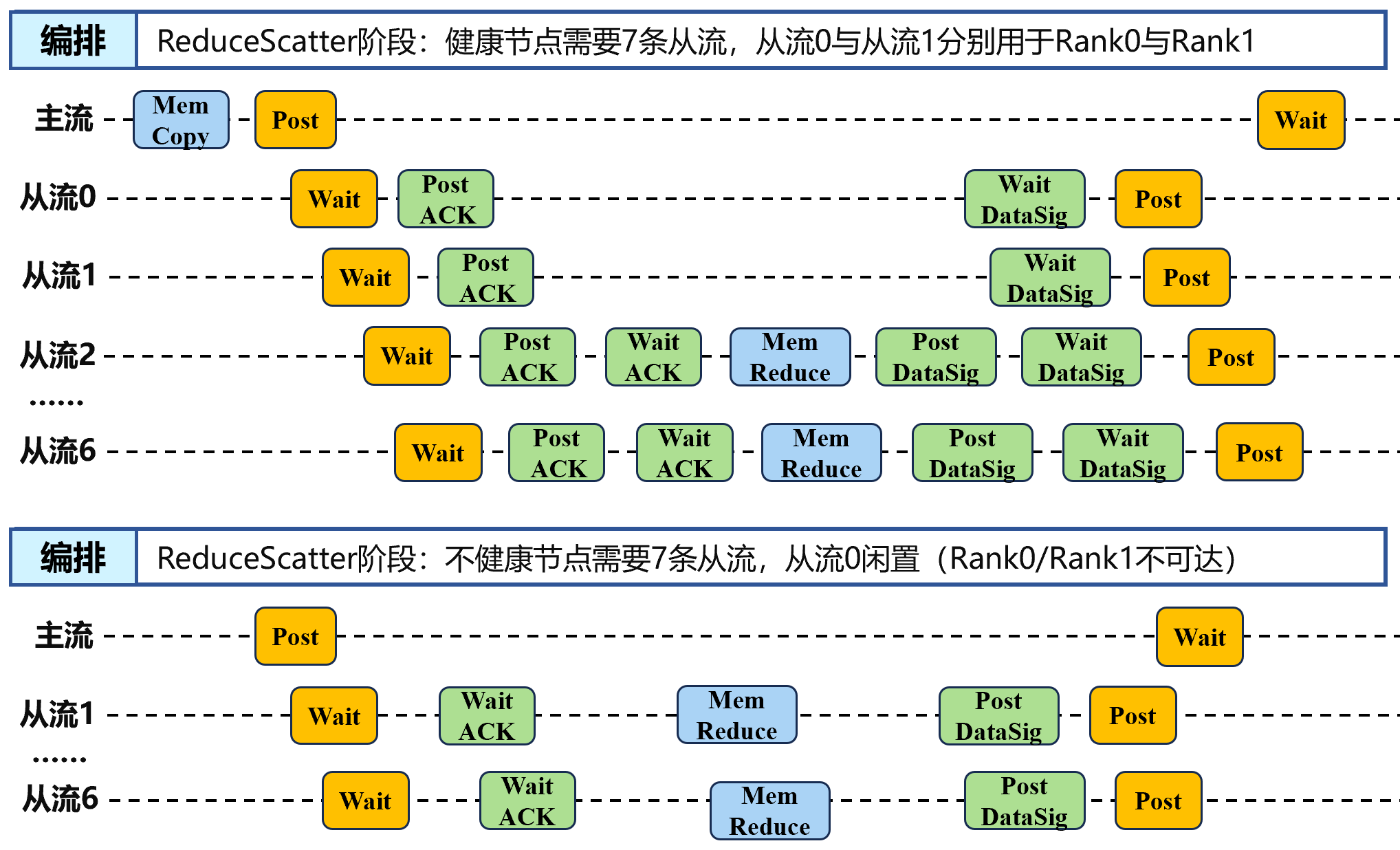

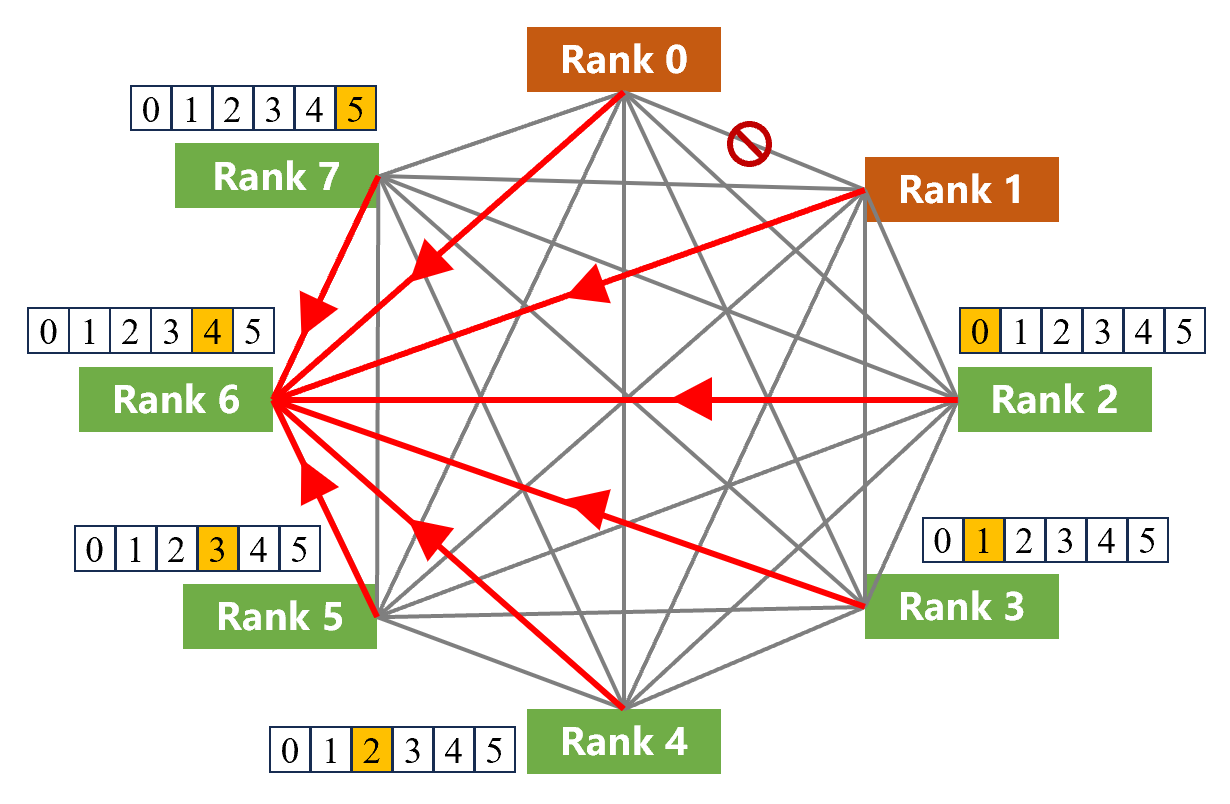

// Perform ReduceScatter
// col0 col1 col2 | col0 col1 col2
// R0: [ 2, 2, 2 ] | R0: [ 8, 2, 2 ]
// R1: [ 2, 2, 2 ] | R1: [ 2, 8, 2 ]
// R2: [ 2, 2, 2 ] | R2: [ 2, 2, 8 ]
// ------------------- --------------------
// R3: [ 2, 2, 2 ] | R3: [ 2, 2, 2 ]
HcclResult CollCustomHugeAllReduceMeshExecutor::HealthyPerformReduceScatter(const OpParam ¶m, ExecMem &execMem)
{
// Retrieve the sub-communication domain information and master stream
CHK_RET(CheckCommSize(COMM_LEVEL0, COMM_INDEX_0 + 1));
SubCommInfo level0CommInfo = GetSubCommInfo(COMM_LEVEL0, COMM_INDEX_0);
hccl::Stream &masterStream = const_cast<hccl::Stream &>(param.stream);
// Dertermine the information for the topology and the data
u32 rankSize = level0CommInfo.localRankSize;
u32 rankId = level0CommInfo.localRank;
u32 unitSize = SIZE_TABLE[param.DataDes.dataType];

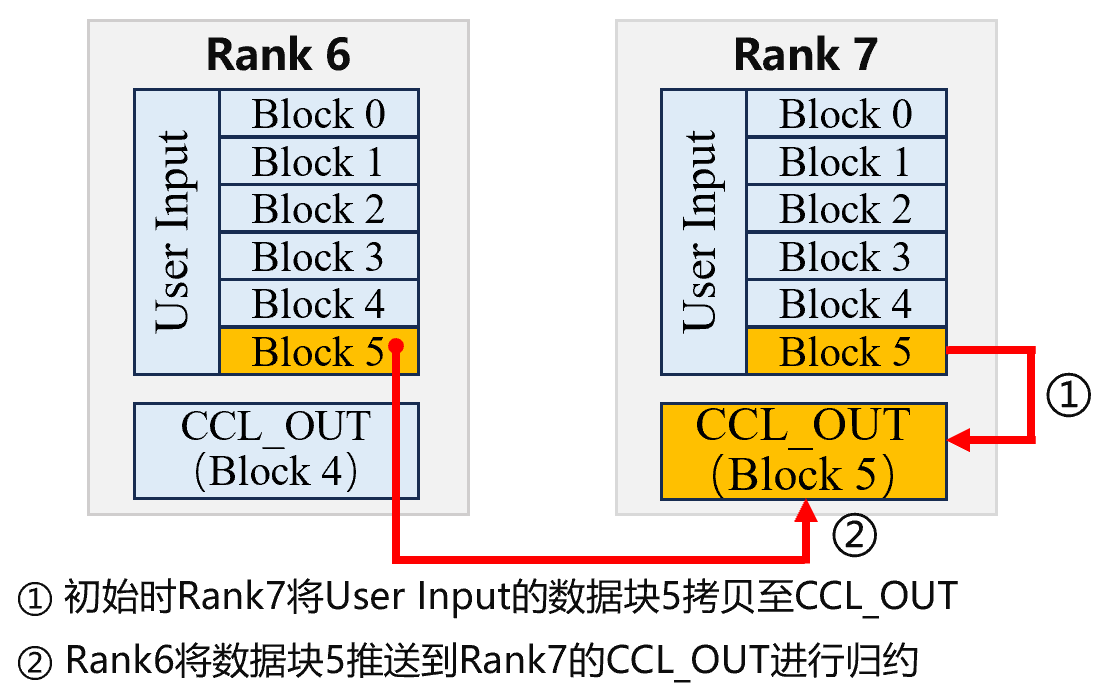

// For healthy ranks, copy data block from user input buffer to CCL_Out
{
u32 blockIdx = GetResponsibleBlockIdx(rankId);
u64 blockSize = GetBlockSize(blockIdx);
u64 blockOffset = GetBlockOffset(blockIdx);
if (blockSize != 0)
{
DeviceMem src = DeviceMem::create(static_cast<char *>(execMem.inputPtr) + blockOffset, blockSize);
DeviceMem dst = DeviceMem::create(execMem.outputMem.ptr(), blockSize);
CHK_RET(HcclD2DMemcpyAsync(dispatcher_, dst, src, masterStream));
}
}
// Post notify signals from master stream to all slave streams
CHK_RET(MainPostToSlaves(param, execMem));
// Slave streams wait for master's notification
CHK_RET(SlavesWaitForMain(param, execMem));
// Case A: The healthy rank notifies the unhealthy rank that it can reduce data
// Case B: Normal communication between healthy ranks
for (u32 round = 1; round < rankSize; round++)
{
// Get the slave stream assigned for communication with dstRank
u32 dstRank = (round + rankId) % rankSize;
Stream &subStream = algResResp_->slaveStreams[round - 1];
// Case A: The healthy rank notifies the unhealthy rank that it can reduce data
if (!IsHealthyRank(dstRank))
{
// Notify remote rank data has been ready
CHK_RET(level0CommInfo.links[dstRank]->TxAck(subStream));
// Wait for the remote rank to notify that data transfer and operations have completed
CHK_RET(level0CommInfo.links[dstRank]->RxDataSignal(subStream));
continue;
}
// Case B: Normal communication between healthy ranks
// Dertermine the information for the data
u32 blockIdx = GetResponsibleBlockIdx(dstRank);
u64 blockSize = GetBlockSize(blockIdx);
u64 blockOffset = GetBlockOffset(blockIdx);
// Notify remote rank data has been ready
CHK_RET(level0CommInfo.links[dstRank]->TxAck(subStream));
// Wait for notification from the remote rank
CHK_RET(level0CommInfo.links[dstRank]->RxAck(subStream));
// Source address on localRank user input (local)
void *srcLocalMemPtr = static_cast<char *>(execMem.inputPtr) + blockOffset;
DeviceMem srcLocal = DeviceMem::create(static_cast<char *>(srcLocalMemPtr), blockSize);
// Destination address on dstRank CCL_Out (remote)
void *dstRemoteMemPtr = nullptr;
CHK_RET(level0CommInfo.links[dstRank]->GetRemoteMem(UserMemType::OUTPUT_MEM, &dstRemoteMemPtr));
DeviceMem dstRemote = DeviceMem::create(static_cast<char *>(dstRemoteMemPtr), blockSize);
// Perform HcclD2DMemcpyAsync: Copy and reduce data from local user input to remote CCL_Out
CHK_RET(HcclReduceAsync(dispatcher_, static_cast<void *>(srcLocal.ptr()), blockSize / unitSize,
param.DataDes.dataType, param.reduceType, subStream,
static_cast<void *>(dstRemote.ptr()),
level0CommInfo.links[dstRank]->GetRemoteRank(),
level0CommInfo.links[dstRank]->GetLinkType(),
INLINE_REDUCE_BIT));
// Notify the remote rank that data transfer and operations have completed
CHK_RET(level0CommInfo.links[dstRank]->TxDataSignal(subStream));
// Wait for data transfer and operations has been completed
CHK_RET(level0CommInfo.links[dstRank]->RxDataSignal(subStream));
}
// Slave streams notify the master stream that their tasks are completed
CHK_RET(SlavesPostToMain(param, execMem));
// The master stream waits for all slave streams to complete their tasks
CHK_RET(MainWaitForSlaves(param, execMem));
return HCCL_SUCCESS;
}
HcclResult CollCustomHugeAllReduceMeshExecutor::UnhealthyPerformReduceScatter(const OpParam ¶m, ExecMem &execMem)
{
// Retrieve the sub-communication domain information and the master stream
CHK_RET(CheckCommSize(COMM_LEVEL0, COMM_INDEX_0 + 1));
SubCommInfo level0CommInfo = GetSubCommInfo(COMM_LEVEL0, COMM_INDEX_0);
hccl::Stream &masterStream = const_cast<hccl::Stream &>(param.stream);
// Dertermine the information for the topology and the data
u32 rankSize = level0CommInfo.localRankSize;
u32 rankId = level0CommInfo.localRank;
u32 unitSize = SIZE_TABLE[param.DataDes.dataType];
// Post notify signals from master stream to all slave streams
CHK_RET(MainPostToSlaves(param, execMem));
// Slave streams wait for master's notification
CHK_RET(SlavesWaitForMain(param, execMem));
// Case: Unhealthy ranks reduce data block to healthy ranks
for (u32 round = 1; round < rankSize; round++)
{
// Get the slave stream assigned for communication with dstRank
u32 dstRank = (round + rankId) % rankSize;
Stream &subStream = algResResp_->slaveStreams[round - 1];
// Skipping unhealthy ranks
if (!IsHealthyRank(dstRank))
{
CHK_RET(SlaveExecEmptyTask(param, execMem, round - 1));
continue;
}
// Dertermine the information for the data
u32 blockIdx = GetResponsibleBlockIdx(dstRank);
u64 blockSize = GetBlockSize(blockIdx);
u64 blockOffset = GetBlockOffset(blockIdx);
// Wait for notification from the remote rank
CHK_RET(level0CommInfo.links[dstRank]->RxAck(subStream));
// Source address on localRank user input (local)
void *srcLocalMemPtr = static_cast<char *>(execMem.inputPtr) + blockOffset;
DeviceMem srcLocal = DeviceMem::create(static_cast<char *>(srcLocalMemPtr), blockSize);
// Destination address on dstRank CCL_Out (remote)
void *dstRemoteMemPtr = nullptr;
CHK_RET(level0CommInfo.links[dstRank]->GetRemoteMem(UserMemType::OUTPUT_MEM, &dstRemoteMemPtr));
DeviceMem dstRemote = DeviceMem::create(static_cast<char *>(dstRemoteMemPtr), blockSize);
// Perform HcclD2DMemcpyAsync: Copy and reduce data from local user input to remote CCL_Out
CHK_RET(HcclReduceAsync(dispatcher_, static_cast<void *>(srcLocal.ptr()), blockSize / unitSize,
param.DataDes.dataType, param.reduceType, subStream,
static_cast<void *>(dstRemote.ptr()),
level0CommInfo.links[dstRank]->GetRemoteRank(),
level0CommInfo.links[dstRank]->GetLinkType(),
INLINE_REDUCE_BIT));
// Notify the remote rank that data transfer and operations have completed
CHK_RET(level0CommInfo.links[dstRank]->TxDataSignal(subStream));
}
// Slave streams notify the master stream that their tasks are completed
CHK_RET(SlavesPostToMain(param, execMem));
// The master stream waits for all slave streams to complete their tasks
CHK_RET(MainWaitForSlaves(param, execMem));
return HCCL_SUCCESS;
}
// Perform AllGather
// col0 col1 col2 | col0 col1 col2
// R0: [ 8, 2, 2 ] | R0: [ 8, 8, 8 ]
// R1: [ 2, 8, 2 ] | R1: [ 8, 8, 8 ]
// R2: [ 2, 2, 8 ] | R2: [ 8, 8, 8 ]
// ------------------- --------------------
// R3: [ 2, 2, 2 ] | R3: [ 8, 8, 8 ]
HcclResult CollCustomHugeAllReduceMeshExecutor::HealthyPerformAllGather(const OpParam ¶m, ExecMem &execMem)
{
// Retrieve the sub-communication domain information and the master stream
CHK_RET(CheckCommSize(COMM_LEVEL0, COMM_INDEX_0 + 1));
SubCommInfo level0CommInfo = GetSubCommInfo(COMM_LEVEL0, COMM_INDEX_0);
hccl::Stream &masterStream = const_cast<hccl::Stream &>(param.stream);
// Dertermine the information for the topology and the data
u32 rankSize = level0CommInfo.localRankSize;
u32 rankId = level0CommInfo.localRank;
u32 unitSize = SIZE_TABLE[param.DataDes.dataType];
// Post notify signals from master stream to all slave streams
CHK_RET(MainPostToSlaves(param, execMem));
// Slave streams wait for master's notification
CHK_RET(SlavesWaitForMain(param, execMem));

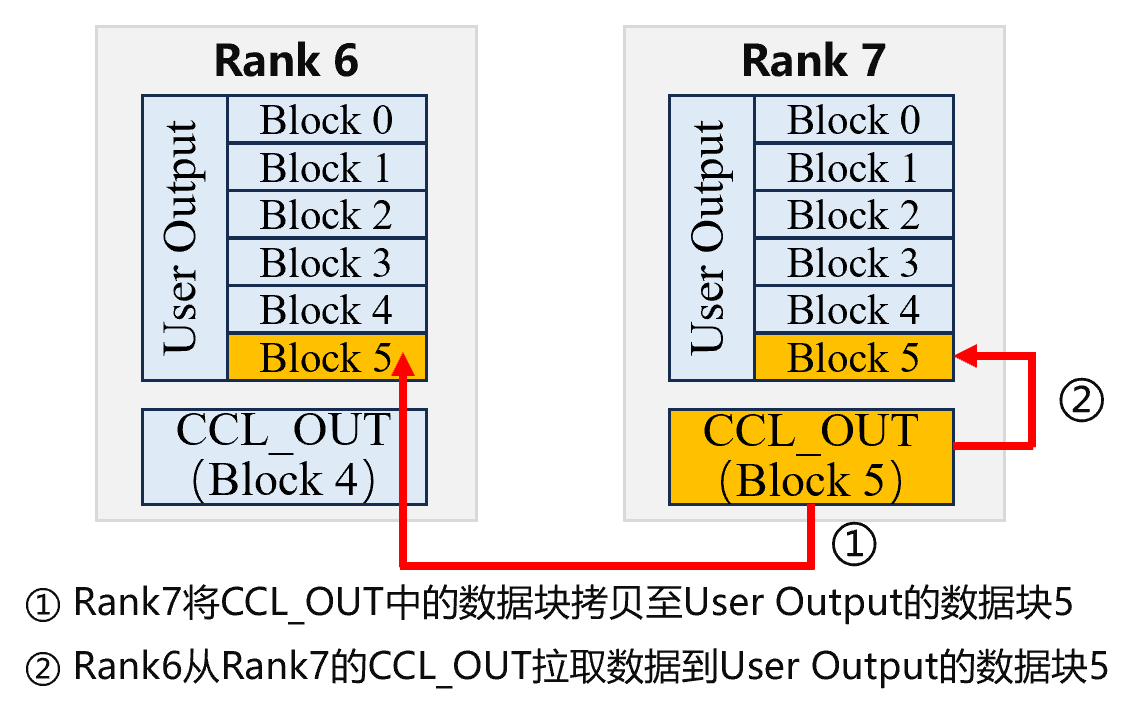

// For healthy ranks, copy data block from CCL_Out to user output buffer
{
u32 blockIdx = GetResponsibleBlockIdx(rankId);
u64 blockSize = GetBlockSize(blockIdx);
u64 blockOffset = GetBlockOffset(blockIdx);
if (blockSize != 0)
{
DeviceMem src = DeviceMem::create(execMem.outputMem.ptr(), blockSize);
DeviceMem dst = DeviceMem::create(static_cast<char *>(execMem.outputPtr) + blockOffset, blockSize);
CHK_RET(HcclD2DMemcpyAsync(dispatcher_, dst, src, masterStream));
}
}
// Case A: The healthy rank notifies the unhealthy rank that it can copy data
// Case B: Normal communication between healthy ranks
for (u32 round = 1; round < rankSize; round++)
{
// Get the slave stream assigned for communication with dstRank
u32 dstRank = (rankId - round + rankSize) % rankSize;
Stream &subStream = algResResp_->slaveStreams[round - 1];
// Case A: The healthy rank notifies the unhealthy rank that it can copy data
if (!IsHealthyRank(dstRank))
{
// Notify remote rank data has been ready
CHK_RET(level0CommInfo.links[dstRank]->TxAck(subStream));
// Wait for the remote rank to notify that data transfer and operations have completed
CHK_RET(level0CommInfo.links[dstRank]->RxDataSignal(subStream));
continue;
}
// Case B: Normal communication between healthy ranks
// Dertermine the information for the data
u32 blockIdx = GetResponsibleBlockIdx(dstRank);
u64 blockSize = GetBlockSize(blockIdx);
u64 blockOffset = GetBlockOffset(blockIdx);
// Notify remote rank data has been ready
CHK_RET(level0CommInfo.links[dstRank]->TxAck(subStream));
// Wait for notification from the remote rank
CHK_RET(level0CommInfo.links[dstRank]->RxAck(subStream));
// Source address on dstRank CCL_Out (remote)
void *srcRemoteMemPtr = nullptr;
CHK_RET(level0CommInfo.links[dstRank]->GetRemoteMem(UserMemType::OUTPUT_MEM, &srcRemoteMemPtr));
DeviceMem srcRemote = DeviceMem::create(static_cast<char *>(srcRemoteMemPtr), blockSize);
// Destination address on localRank user-output (local)
void *dstLocalMemPtr = static_cast<char *>(execMem.outputPtr) + blockOffset;
DeviceMem dstLocal = DeviceMem::create(static_cast<char *>(dstLocalMemPtr), blockSize);
// Perform HcclD2DMemcpyAsync
CHK_RET(HcclD2DMemcpyAsync(dispatcher_, dstLocal, srcRemote, subStream,
level0CommInfo.links[dstRank]->GetRemoteRank(),
level0CommInfo.links[dstRank]->GetLinkType()));
// Notify the remote rank that data transfer and operations have completed
CHK_RET(level0CommInfo.links[dstRank]->TxDataSignal(subStream));
// Wait for data transfer and operations has been completed
CHK_RET(level0CommInfo.links[dstRank]->RxDataSignal(subStream));
}
// Slave streams notify the master stream that their tasks are completed
CHK_RET(SlavesPostToMain(param, execMem));
// The master stream waits for all slave streams to complete their tasks
CHK_RET(MainWaitForSlaves(param, execMem));
return HCCL_SUCCESS;
}
HcclResult CollCustomHugeAllReduceMeshExecutor::UnhealthyPerformAllGather(const OpParam ¶m, ExecMem &execMem)
{
// Retrieve the sub-communication domain information and the master stream
CHK_RET(CheckCommSize(COMM_LEVEL0, COMM_INDEX_0 + 1));
SubCommInfo level0CommInfo = GetSubCommInfo(COMM_LEVEL0, COMM_INDEX_0);
hccl::Stream &masterStream = const_cast<hccl::Stream &>(param.stream);
// Dertermine the information for the topology and the data
u32 rankSize = level0CommInfo.localRankSize;
u32 rankId = level0CommInfo.localRank;
u32 unitSize = SIZE_TABLE[param.DataDes.dataType];
// Post notify signals from master stream to all slave streams
CHK_RET(MainPostToSlaves(param, execMem));
// Slave streams wait for master's notification
CHK_RET(SlavesWaitForMain(param, execMem));
// Case: Unhealthy ranks copy data block from healthy ranks
for (u32 round = 1; round < rankSize; round++)
{
// Get the slave stream assigned for communication with dstRank
u32 dstRank = (rankId - round + rankSize) % rankSize;
Stream &subStream = algResResp_->slaveStreams[round - 1];
// Skipping unhealthy ranks
if (!IsHealthyRank(dstRank))
{
CHK_RET(SlaveExecEmptyTask(param, execMem, round - 1));
continue;
}
// Dertermine the information for the data
u32 blockIdx = GetResponsibleBlockIdx(dstRank);
u64 blockSize = GetBlockSize(blockIdx);
u64 blockOffset = GetBlockOffset(blockIdx);
// Wait for notification from the remote rank
CHK_RET(level0CommInfo.links[dstRank]->RxAck(subStream));
// Source address on dstRank CCL_Out (remote)
void *srcRemoteMemPtr = nullptr;
CHK_RET(level0CommInfo.links[dstRank]->GetRemoteMem(UserMemType::OUTPUT_MEM, &srcRemoteMemPtr));
DeviceMem srcRemote = DeviceMem::create(static_cast<char *>(srcRemoteMemPtr), blockSize);
// Destination address on localRank user-output (local)
void *dstLocalMemPtr = static_cast<char *>(execMem.outputPtr) + blockOffset;
DeviceMem dstLocal = DeviceMem::create(static_cast<char *>(dstLocalMemPtr), blockSize);
// Perform HcclD2DMemcpyAsync
CHK_RET(HcclD2DMemcpyAsync(dispatcher_, dstLocal, srcRemote, subStream,
level0CommInfo.links[dstRank]->GetRemoteRank(),
level0CommInfo.links[dstRank]->GetLinkType()));
// Notify the remote rank that data transfer and operations have completed
CHK_RET(level0CommInfo.links[dstRank]->TxDataSignal(subStream));
}
// Slave streams notify the master stream that their tasks are completed
CHK_RET(SlavesPostToMain(param, execMem));
// The master stream waits for all slave streams to complete their tasks
CHK_RET(MainWaitForSlaves(param, execMem));
return HCCL_SUCCESS;
}
// Determine if a rank is healthy
bool CollCustomHugeAllReduceMeshExecutor::IsHealthyRank(u32 rankId)
{
return rankId != BROKEN_RANK_X && rankId != BROKEN_RANK_Y;
}
// Cut the chunk into multiple parts and ensure that the bytes are aligned
HcclResult CollCustomHugeAllReduceMeshExecutor::PrepareBlock(u64 dataCount, u32 unitSize, u32 blockCount)
{
Block temp;
u64 totalSize = dataCount * unitSize;
dataBlock.clear();
dataBlock.reserve(blockCount);
if (blockCount == 0)
{
return HCCL_E_PARA;
}
u64 sizePerBlock = (totalSize + blockCount - 1) / blockCount;
sizePerBlock = RoundUpWithDivisor(sizePerBlock, HCCL_MIN_SLICE_ALIGN_910B);
u64 residueSize = totalSize;
u32 i = 0;
while (residueSize > 0)
{
u64 blockSize = sizePerBlock < residueSize ? sizePerBlock : residueSize;
temp.size = blockSize;
temp.offset = totalSize - residueSize;
i++;
if (blockSize <= 0)
{
return HCCL_E_PARA;
}
residueSize -= blockSize;
dataBlock.push_back(temp);
}
while (i < blockCount)
{
temp.size = 0;
temp.offset = totalSize;
i++;
dataBlock.push_back(temp);
}
return HCCL_SUCCESS;
}
// Get the size of the specific block
u64 CollCustomHugeAllReduceMeshExecutor::GetBlockSize(u32 blockIdx)
{
return dataBlock[blockIdx].size;
}
// Get the offset of the specific block
u64 CollCustomHugeAllReduceMeshExecutor::GetBlockOffset(u32 blockIdx)
{
return dataBlock[blockIdx].offset;
}
// Get the responsible block index of the specific rank
u32 CollCustomHugeAllReduceMeshExecutor::GetResponsibleBlockIdx(u32 rankId)
{
return rankId - 2;
}
// Post notify signals from master stream to all slave streams
HcclResult CollCustomHugeAllReduceMeshExecutor::MainPostToSlaves(const OpParam ¶m, ExecMem &execMem)
{
hccl::Stream &masterStream = const_cast<hccl::Stream &>(param.stream);
for (u32 signalIndex = 0; signalIndex < algResResp_->slaveStreams.size(); signalIndex++)
{
CHK_RET(LocalNotify::Post(masterStream, dispatcher_,
algResResp_->notifiesAux[signalIndex], PROF_STAGE_1));
}
return HCCL_SUCCESS;
}
// Slave streams wait for master's notification
HcclResult CollCustomHugeAllReduceMeshExecutor::SlavesWaitForMain(const OpParam ¶m, ExecMem &execMem)
{
for (u32 streamIndex = 0; streamIndex < algResResp_->slaveStreams.size(); streamIndex++)
{
CHK_RET(LocalNotify::Wait(algResResp_->slaveStreams[streamIndex], dispatcher_,
algResResp_->notifiesAux[streamIndex], PROF_STAGE_1));
}
return HCCL_SUCCESS;
}
// Slave streams notify the master stream that their tasks are completed
HcclResult CollCustomHugeAllReduceMeshExecutor::SlavesPostToMain(const OpParam ¶m, ExecMem &execMem)
{
for (u32 streamIndex = 0; streamIndex < algResResp_->slaveStreams.size(); streamIndex++)
{
CHK_RET(LocalNotify::Post(algResResp_->slaveStreams[streamIndex], dispatcher_,
algResResp_->notifiesMain[streamIndex], PROF_STAGE_1));
}
return HCCL_SUCCESS;
}
// The master stream waits for all slave streams to complete their tasks
HcclResult CollCustomHugeAllReduceMeshExecutor::MainWaitForSlaves(const OpParam ¶m, ExecMem &execMem)
{
hccl::Stream &masterStream = const_cast<hccl::Stream &>(param.stream);
for (u32 signalIndex = 0; signalIndex < algResResp_->slaveStreams.size(); signalIndex++)
{
CHK_RET(LocalNotify::Wait(masterStream, dispatcher_,
algResResp_->notifiesMain[signalIndex], PROF_STAGE_1));
}
return HCCL_SUCCESS;
}
// The master stream executes an empty task to ensure synchronization
HcclResult CollCustomHugeAllReduceMeshExecutor::MainExecEmptyTask(const OpParam ¶m, ExecMem &execMem)
{
hccl::Stream &masterStream = const_cast<hccl::Stream &>(param.stream);
DeviceMem srcTmp = DeviceMem::create(execMem.inputPtr, 0);
DeviceMem dstTmp = DeviceMem::create(execMem.outputPtr, 0);
CHK_RET(HcclD2DMemcpyAsync(dispatcher_, dstTmp, srcTmp, masterStream));
return HCCL_SUCCESS;
}
// The slave stream execute an empty task to ensure synchronization
HcclResult CollCustomHugeAllReduceMeshExecutor::SlaveExecEmptyTask(const OpParam ¶m, ExecMem &execMem, u32 streamIndex)
{
hccl::Stream &masterStream = const_cast<hccl::Stream &>(param.stream);
DeviceMem srcTmp = DeviceMem::create(execMem.inputPtr, 0);
DeviceMem dstTmp = DeviceMem::create(execMem.outputPtr, 0);
CHK_RET(HcclD2DMemcpyAsync(dispatcher_, dstTmp, srcTmp, algResResp_->slaveStreams[streamIndex]));
return HCCL_SUCCESS;
}
REGISTER_EXEC("CustomHugeAllReduceMeshExecutor", CustomHugeAllReduceMesh, CollCustomHugeAllReduceMeshExecutor);
} // namespace hccl
|
